Sort and group your models in the model tree
In BIMcollab ZOOM, the model tree is sorted alphabetically. To sort and group models, prefixes can be used on the models in your file:

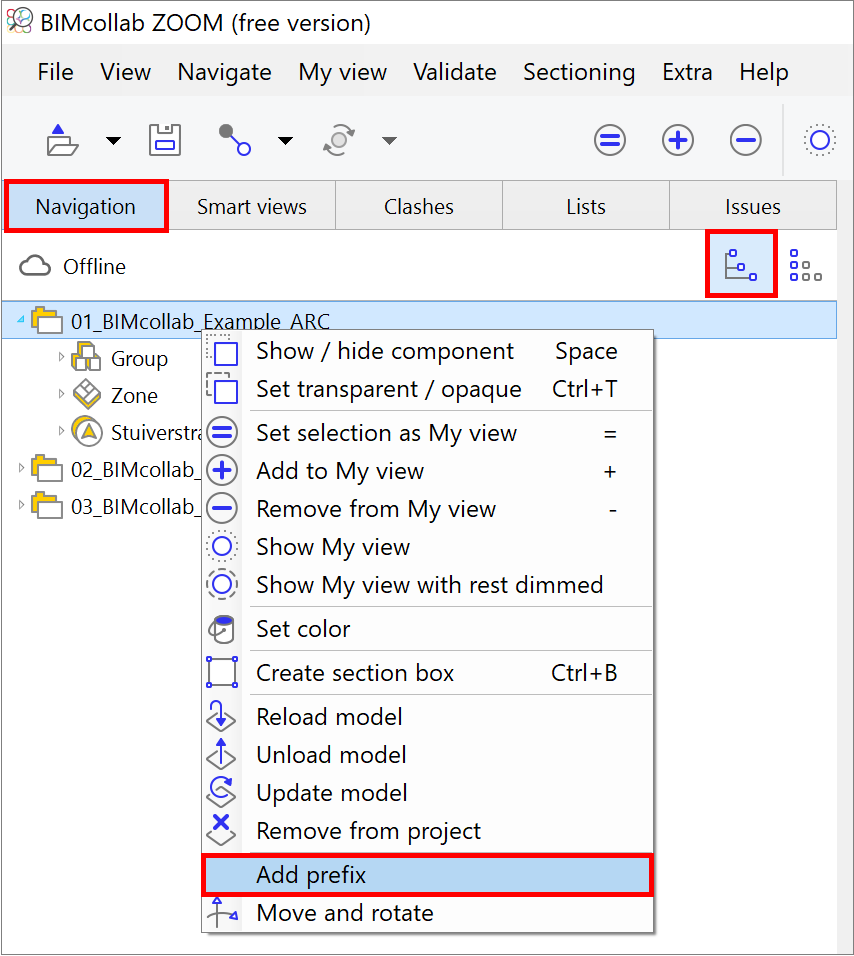

- Right-click a model in the model tree
- Choose ‘Add prefix’ to give models a prefix
Models with the same prefix will be grouped.
Prefixes are stored in the project folder or project file, so next time you open the project the models will be sorted the same way.
