How to reopen Navigation Information panel in BIMcollab WebViewer?

How to reopen Navigation Information panel in BIMcollab WebViewer?

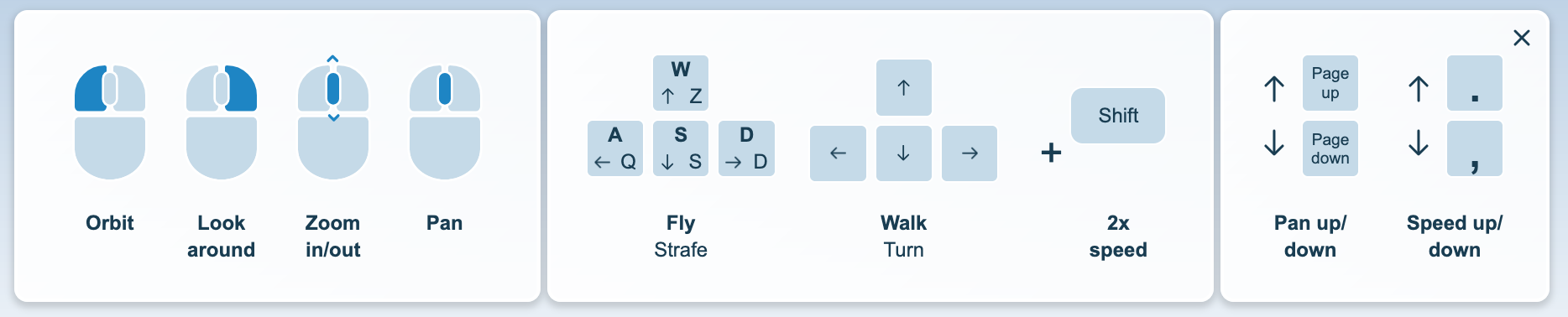

When you open the BIMcollab WebViewer for the first time, an information panel will be visible at the bottom of the page, indicating how to navigate in the Viewer.





This panel can be closed by clicking on the cross (X) at the top right. Although the panel consists of three different parts, it is actually only one panel. All three parts will disappear with one click. Because this is an information panel and there are no actual features available, it was decided to only show this panel once. After it has been closed, there is no way to show it again.

However, there is a workaround to show the panel on the screen again. To do this, you need to remove the associated ‘site data’ of your BIMcollab Space from your Internet browser.

Google Chrome:
  1. Go to ‘Settings’.
  2. Select ‘Privacy and security’ on the left.
  3. From the main menu select ‘Third-party cookies’.
  4. Scroll down in the new dialogue and expand ‘See all data and permissions’.
  5. Select ‘bimcollab.com’ from the list and delete this item.
  6. Go to your BIMcollab Space and reload the page, you have to login again.


Firefox:
  1. Go to ‘Settings’.
  2. Select ‘Privacy & Security’ on the left.
  3. Search section ‘Cookies and Site Data’.
  4. Click on [Managa Data..].
  5. In the new dialogue search for ‘bimcollab.com’ and remove it.
  6. Go to your BIMcollab Space and reload the page, you have to login again.


Microsoft Edge:
  1. Go to ‘Settings’.
  2. Select ‘Cookies and site permissions’ on the left.
  3. Click on ‘Manage and delete cookies and site data’ to expand the options.
  4. Click on ‘See all cookies and site data’ to expand the options.
  5. Search for ‘bimcollab.com’ and click on it to view the BIMcollab Spaces.
  6. Delete the BIMcollab Space which Navigation Panel you want to see.
  7. Go to your BIMcollab Space and reload the page, you have to login again.
